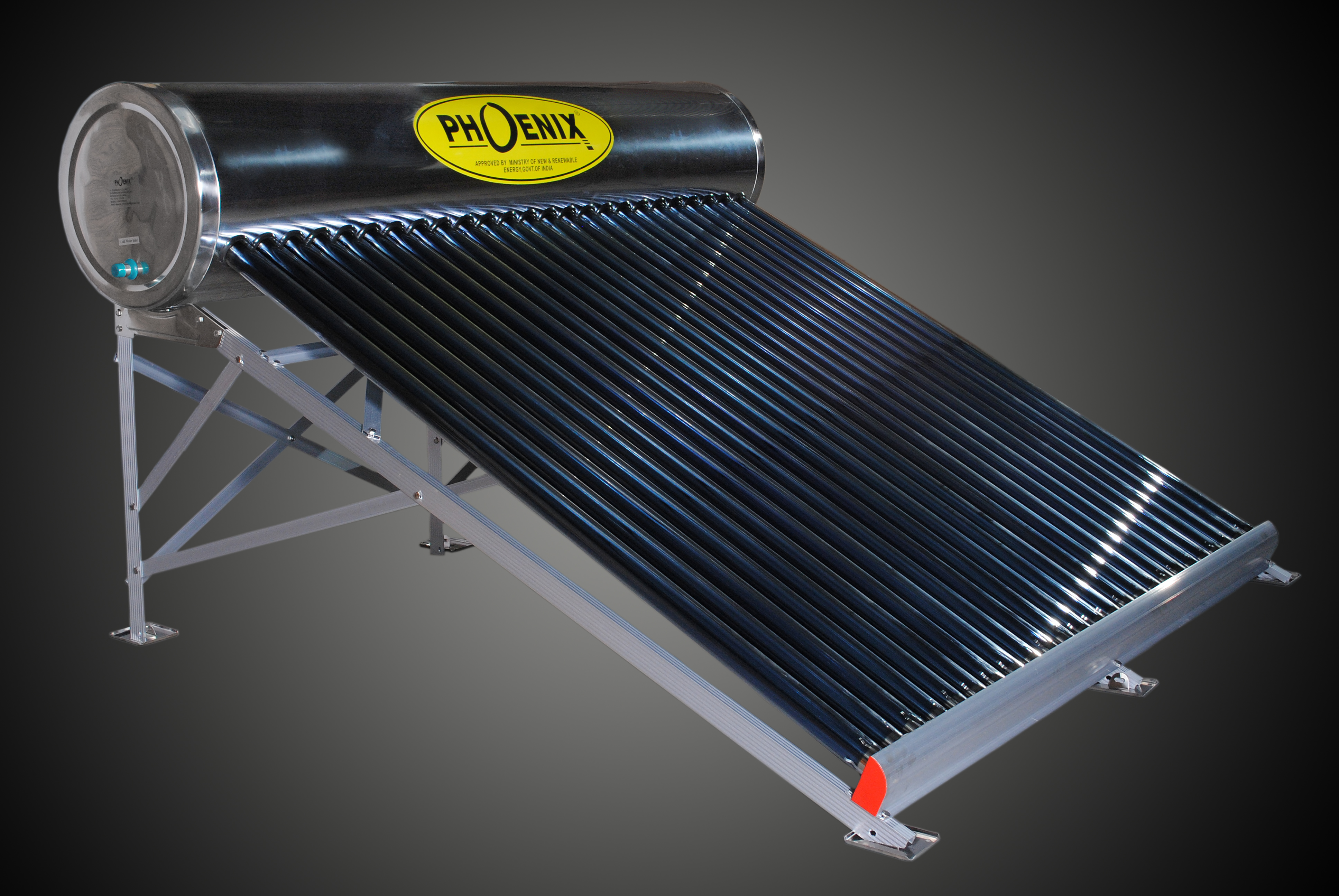

SOLAR WATER HEATER 100/150/200/250/300 LPD

• Inner of Water Tank :0.50mm Thick Stainless Steel 316 L grade.
• Outer of Water Tank :0.35mm Thick Stainless Steel with 202 Material.
• Bracket(Stand of Water Tank) :Alluminium Alloy Bracket with 2.5mm Thickness.
• Insulation :PUF 50mm
• Vaccum Tubes :Three Layers Blue Tube in 58mm X 1800mm size
• Provision of Electrical Heater :Inlet from Left Bottom & Outlet from Right Top with 3/4 Male BSP threading is provided
• Warranty : 5 years
• System Operational Life :10 Years

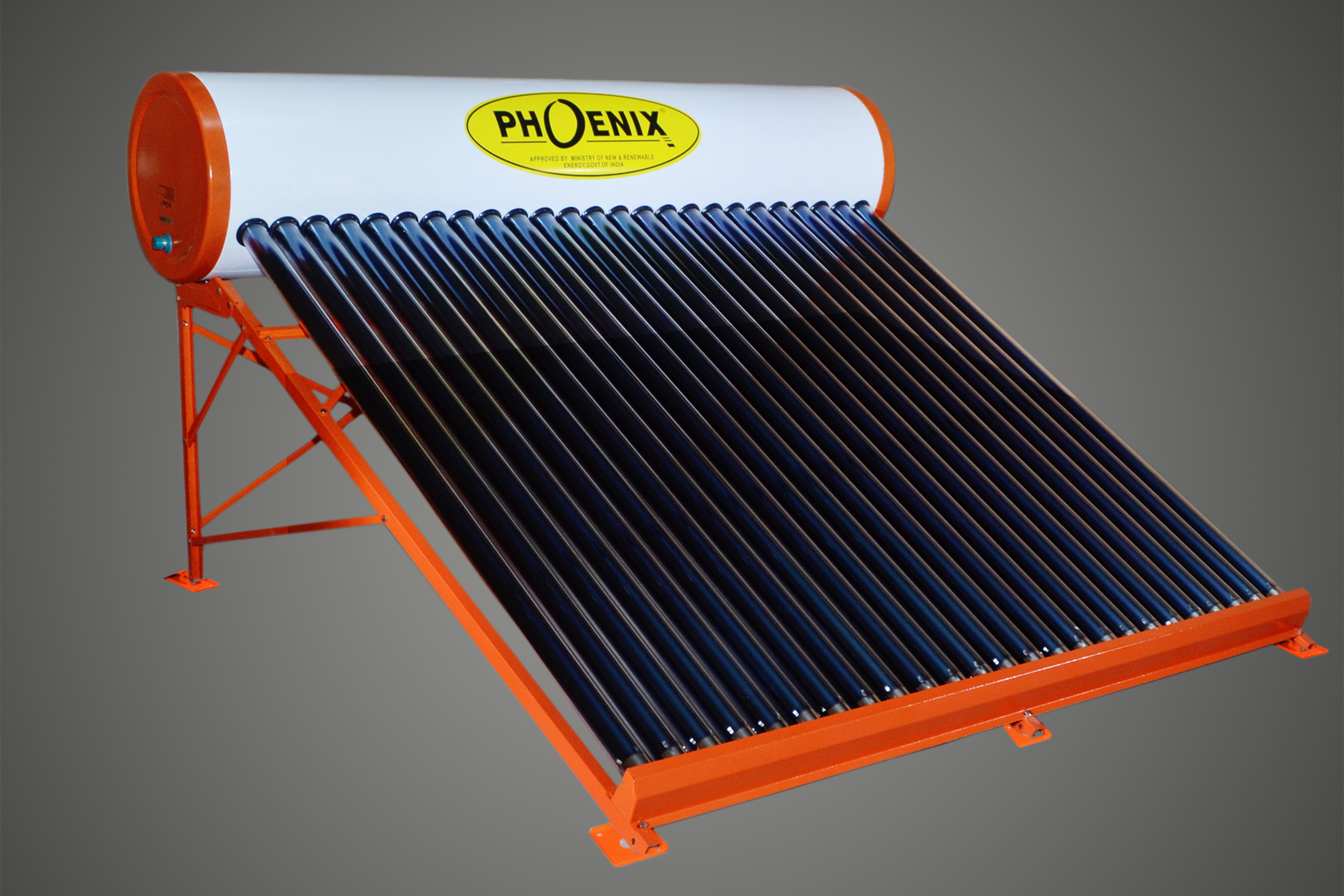

SOLAR WATER HEATER 100/150/200/250/300 LPD PC

• Inner of Water Tank :0.50mm Thick Stainless Steel 316 L grade.
• Outer of Water Tank :0.35mm Thick with pre-coated GI().
• Bracket(Stand of Water Tank) :Powder Coated Material, 1.5mm thickness.
• Insulation :PUF 50mm
• Vaccum Tubes :Three Layers Blue Tube in 58mm X 1800mm size
• Provision of Electrical Heater :Inlet from Left Bottom & Outlet from Right Top with 3/4 Male BSP threading is provided
• Warranty : 5 years
• System Operational Life :10 Years

PRESSURRISED SOLAR WATER HEATER

• Inner of Water Tank :Stainless Steel 304-2B grade,Thickness: 1.2mm
• Outer of Water Tank :Color: White, Material: Pre Coated Galvanised Steel, Thickness:0.35mm.
• Tube :Type :- Three target copper Heat Pipe Vaccum Tube, Size : 58 X 1800mm.
• Bracket :Material : GI Powder Coated, Thickness : 1.5mm with 32 deg angle.
• Insulation :Material: PUF, Thickness : 50mm.
• Inlet & Outlet :Inlet from Left Bottom & Outlet from Right Top with 3/4 Male BSP threading is provided
• Electrical Heater & Anode :Provision at left bottom of tank with 1" Female BSP Threading
• Accessories : One Temprature and Pressure(TP) valve
• Max TDS and Pressure Limit : upto 500 PPM upto
• Pressurized requirement of Premimum Customers. Lates Copper Heat Pipe Based vaccum Tubes
• Pressur upto 6 bar: Low Mantainence.
• Warranty: 5 Years

SOLAR WATER HEATER 125/250 LPD PC

• Inner of Water Tank :Material : Modified Polypropylene.Thickness : 4mm
• Outer of Water Tank :Color: White, Material: GI Powder Coated, Thickness:0.3mm.
• Tube :Qty : 20, Type : Three target, Size : 58 X 1800mm.
• Bracket :Material : Aluminium Alloy, Thickness : 2.5mm with 32 deg angle.
• Insulation :Material: PUF, Thickness : 50mm.
• Capacity : 200 LPD
• Best Substitude for GI Systems. For all kinds of Hard Water. No TDS Limit.
• Single Mould Inner Tank with no Joints.
• Food Grade Quality Inner Tank .
• Thick Aluminium Alloy Bracket Light Weight, Easy Installation.
• Warranty: 5 Years

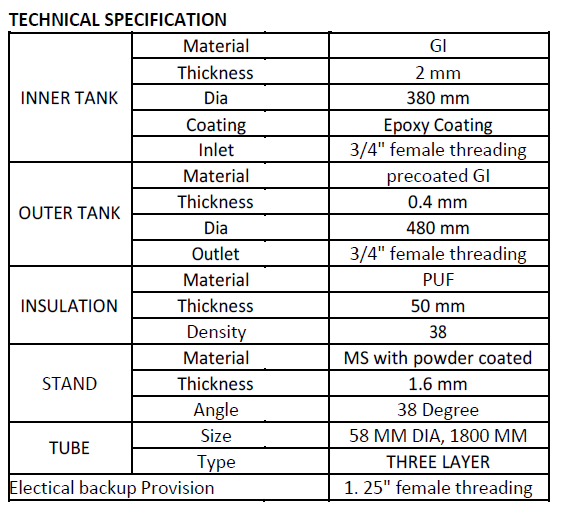

GI SYSTEMS 100/150/200/250/300 LPD
